Product Introduction:

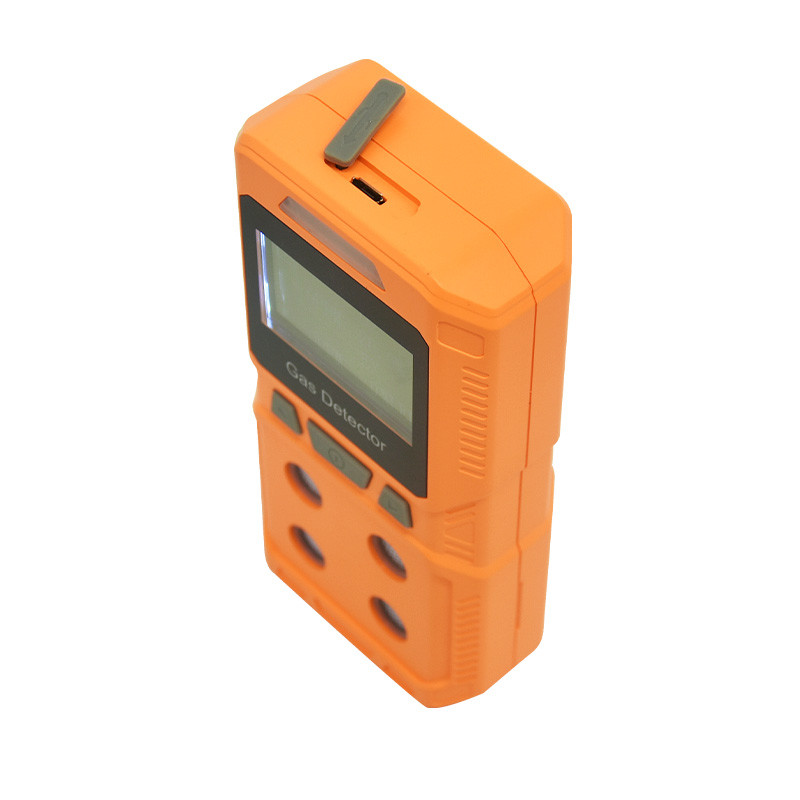

The four-in-one gas detector can detect oxygen, hydrogen sulfide,
carbon monoxide and combustible gases at the same time, among which
hydrogen sulfide and carbon monoxide gas, its special chip
technology greatly improves the response time and stability of the
gas detection performance, and greatly improves the battery life.
Application place:
Energy and chemical industry, municipal engineering, agriculture
and forestry environmental protection, combustible gas environment,
narrow space, leakage, hypoxia, toxic gas and other environment
Features:
- Product Name: Fire Smoke Detector
- Data printing: Not Supported
- Dimensions: Length 70mmx Width 35mmx Height 400mm
- Product model: ABH841
- Alarm mode: Sound, Light, Vibration
- Protection class:IP65
- Alarm apparatus: Sound, Light, Vibration
Technical Parameters:
| Parameter | Detail |
|---|
| Calibration | Two-point Calibration |
| Ambient pressure | Normal Atmospheric Pressure (101.325kPa) |
| Alarm point setting | Combustible: Low Alarm Value 20%LEL, High Alarm Value 50%LEL;
Oxygen: Low Alarm Value 19.5%VOL, High Alarm Value 23.5%VOL;
Hydrogen Sulfide: Low Alarm Value 10ppm, High Alarm Value 35ppm;
Carbon Monoxide Low Alarm Value 50ppm, High Alarm Value 150ppm; |
| Case material | ABS Material |
| Detection principle | Catalytic Combustion Principle, Electrochemical Principle |
| Indication error | ≤±5%FS |
| Response time | T<30s (depending On Sensor) |
| Charger | USB High Current 5V1A Fast Charger Compatible With Universal USB
Phone Charger |
| Product model | ABH841 |
| Data record | Not Supported |
Applications:
The ABH841 is equipped with a Battery Capacity 1800mAh, so it can
be used for more than 10 hours once it is fully charged. It also
has USB High Current 5V1A Fast Charger Compatible With Universal
USB Phone Charger for easy charging. Additionally, it is
lightweight and only weighs 250g.
The ABH841 is designed to detect fire and smoke through Catalytic
Combustion Principle and Electrochemical Principle. The Catalytic
Combustion Sensor and Electrochemical Sensor are supported
depending on the sensors. This device will alert you to any
potential danger before it becomes too serious.
Packing and Shipping:
Packaging and Shipping for Fire Smoke Detector
The Fire Smoke Detector will be packaged and shipped as follows:
- The Fire Smoke Detector is carefully sealed in a strong, waterproof
cardboard box.
- The box is wrapped securely in bubble wrap.
- The package is then placed into a larger cardboard shipping box.
- The shipping box is secured with packing tape.
- The package is shipped with a reliable shipping carrier such as
UPS, FedEx, or USPS.
FAQ:
Q1: What is the brand name of the Fire Smoke Detector?
A1: The brand name of the Fire Smoke Detector is China
International AI Expo.
Q2: What is the model number of the Fire Smoke Detector?
A2: The model number of the Fire Smoke Detector is ABH841.
Q3: Where is the Fire Smoke Detector manufactured?
A3: The Fire Smoke Detector is manufactured in the Chinese
mainland.
Q4: What features does the Fire Smoke Detector have?
A4: The Fire Smoke Detector has a fast response time, a wide
detection range, and low power consumption.
Q5: How do I install the Fire Smoke Detector?
A5: You should read the user manual carefully for installation
instructions. It is recommended to install the Fire Smoke Detector
in a central location in the room. Make sure the detector is
mounted properly and securely to the ceiling or wall.
